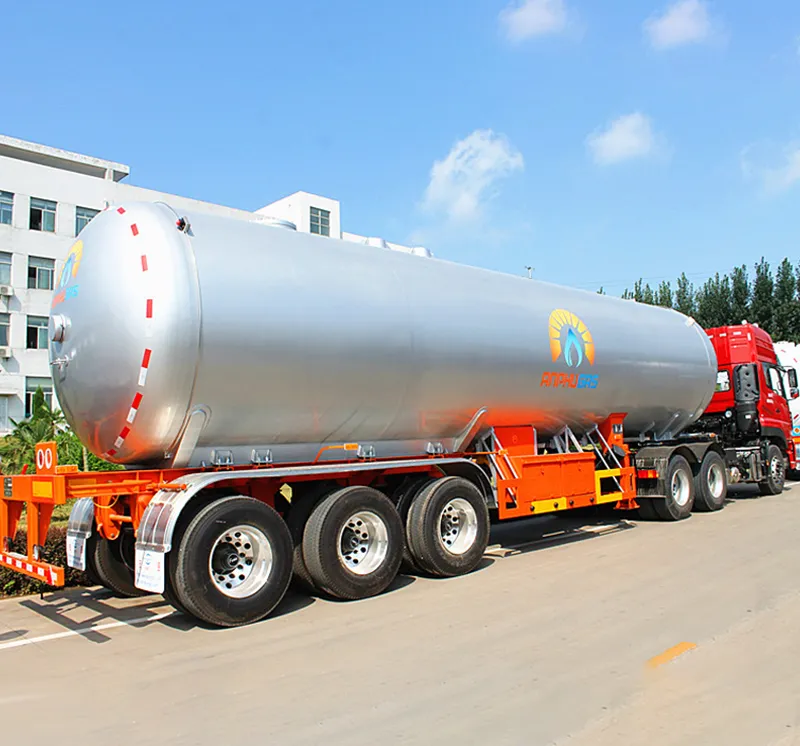

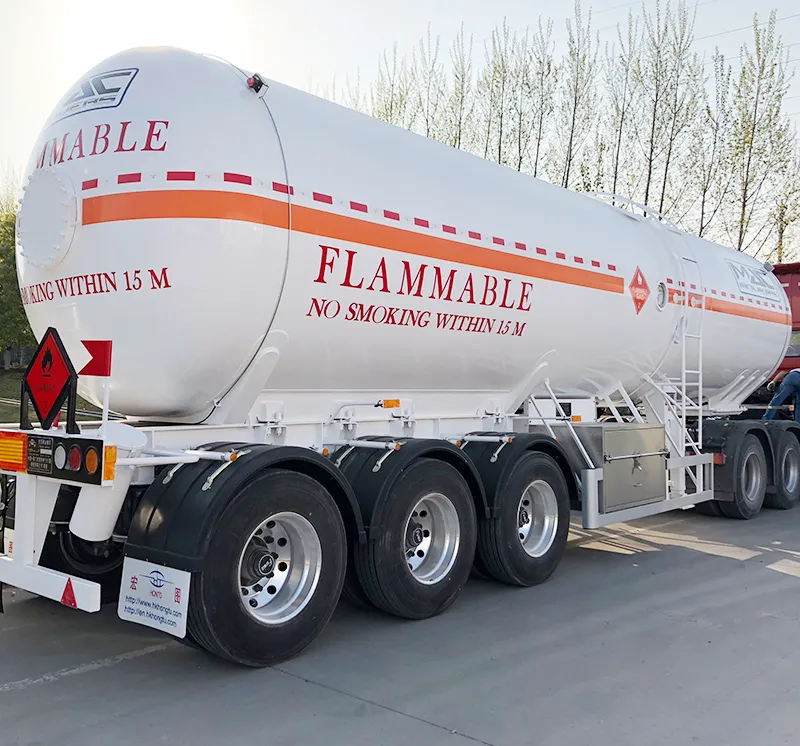

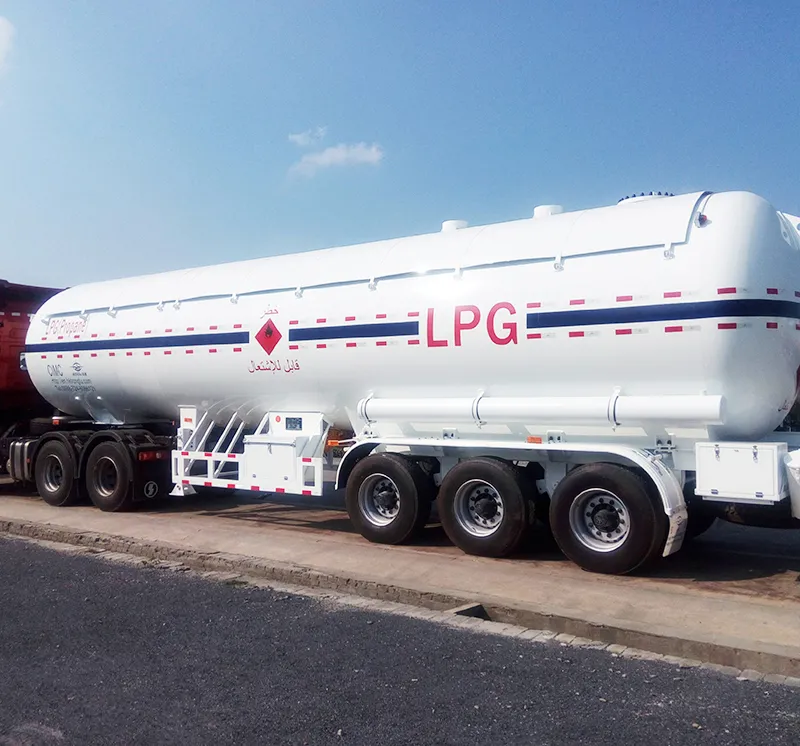

A LPG semi-trailer is a mobile pressure vessel designed for storing and transporting liquefied petroleum gas at normal temperatures. The vessel is constructed with low-alloy steel plates, which provide outstanding performance, safety, and reliability. CIMC ENRIC, the manufacturer of LPG semi-trailers, uses only high-quality materials and accessories for production. With their professional design and manufacturing team and a comprehensive quality assurance system, wee offer a range of LPG semi-trailers in various sizes, from 40m³ to 63.1m³, which can also be customized to meet local requirements, regulations, and standards such as ASME, CE, GB, GOST, and others.
| I. ASME Code | ||||||
| Capacity(m³) | 38.3m³ | 46m³(with pump)** | 47.5m³ | 55m³ | 58m³ | 60m³(with pump)** |
| Capacity(GAL.) | 10117.7GAL. | 12151.9GAL. | 12548.2GAL. | 14529.5GAL. | 15322GAL. | 15850.3GAL. |
| *Max. Payload | 18000kg(19.15 t) | 21300kg(23 t) | 23000kg(23.75 t) | 25710kg(27.5 t) | 26130kg(29 t) | 25500kg(30 t) |
| Kerb Weight | 11900kg | 16900kg | 14000kg | 16790kg | 17300kg | 22150kg |
| Gross Vehicle Weight | 29900kg | 38200kg | 37000kg | 42500kg | 43430kg | 47650kg |
| Outline Dimension | L:10470mm | L:13152mm | L:13137mm | L:14297mm | L:13238mm | L:13052mm |
| W:2550mm | W:2500mm | W:2500mm | W:2500mm | W:2640mm | W:2550mm | |
| H:3920mm | H:3850mm | H:3850mm | H:4000mm | H:4050mm | H:4000mm | |
| Design Pressure | 1.724 MPa | 2.26 MPa | 1.724MPa | 1.724MPa | 1.724MPa | 2.5MPa |
| MAWP | 1.724 MPaat 51.7℃ | 2.26 MPaat 70℃ | 1.724MPa | - | 1.724MPa | 2.5MPa |
| Design Temperature | 51.7℃ | 70℃ | -23.3/51.7℃ | 50℃ | -23.3/51.7℃ | -40/+70℃ |
| Corrosion Allowance | 0mm | 2mm | 0mm | 0mm | 0mm | 1mm |
| Material of Shell | SA-612M(N) | SA-537M | SA-612M(N) | SA-612M(N) | SA-612M(N) | SA-612 |
| Material of Head | SA-612M(N) | SA-537M | SA-612M(N) | SA-612M(N) | SA-612M(N) | SA-612 |
| Thickness of Shell | 12.5mm | 15mm | 12mm | 12.5mm | 14mm | 16mm |
| Thickness of Head | 8mm | 10mm | 8mm | 8mm | 8mm | 16mm |
| Test Pressure(Hydraulic Horizontal) | 2.25MPa | 3.4MPa | 2.24MPa | 2.25MPa | 2.25MPa | 3.58MPa |
| Air Test Pressure | 1.724MPa | 2.26MPa | 1.724MPa | 1.724MPa | 1.724MPa | - |
| *Please note that different capacities will cause different density and different payload.** CIMC ENRIC is able to supply you LPG semi trailer with pump, the reference photos can be viewed above. | ||||||
| Please contact for more different kinds of capacity and standard tanks. | ||||||
| II. China GB Standard | |||||
| Volume(m³) | 36m³ | 46m³ | 52m³ | 58.1m³ | 61.9m³ |
| Volume(GAL.) | 9510.2GAL. | 12151.9GAL. | 13736.9GAL. | 15348.4GAL. | 16352.3GAL. |
| *Max. Payload | 15120kg(18 t) | 19320kg(23 t) | 25506kg(26 t) | 26915kg(29.05 t) | 26000kg(30.05 t) |
| Kerb Weight | 11880kg | 14680kg | 13374kg | 15000kg | 14000kg |
| Gross Vehicle Weight | 27000kg | 34000kg | 38800kg | 41915kg | 40000kg |
| Outline Dimension | L:9400mmW:2500mmH:3900mm | L:10360mmW:2500mmH:3990mm | L:12000mmW:2500mmH:3990mm | L:13150mmW:2500mmH:4100mm | L:13590mmW:2550mmH:4000mm |
| Design Pressure | 1.61MPa | 1.61MPa | 1.77MPa | 1.72/-0.1MPa | 1.61/-0.04MPa |
| Design Temperature | -20/50℃ | -20/50℃ | -20/50℃ | -20/50℃ | -40/50℃ |
| Corrosion Allowance | 1mm | 1mm | 1mm | 1mm | 1mm |
| Material of Shell | Q370R(N) | Q370R(N) | Q420R(WH590D) | Q370R(N) | WH590E(N) |
| Material of Head | Q370R(N) | Q370R(N) | Q420R(WH590D) | Q370R(N) | 16MnDR(N) |
| Thickness of Shell | 12mm | 13mm | 11mm | 12mm | 10mm |
| Thickness of Head | 11mm | 12mm | 10mm | 8mm | 8mm |
| Test Pressure(Hydraulic Horizontal) | 2.1MPa | 2.1MPa | 2.7MPa | 2.24MPa | 2.1MPa |
| Air Test Pressure | 1.61MPa | 1.61MPa | 1.77MPa | 1.72MPa | 1.61MPa |
| CIMC ENRIC is able to supply you LPG semi-trailer with different density and different payload. | |||||
| Please contact for more different kinds of capacity and standard tanks. | |||||
| III. European Standard ADR | |
| Design Code | EN12493:2013+A1:2014 |
| Volume | 60m³ |
| Max. Payload | 25200kg |
| Kerb Weight | 14800kg |
| Gross Vehicle Weight | 40000kg |
| Outline Dimension（LengthxWidthxHeight） | 13115x2550x4000 mm |
| Wheel Base | 7900+1320+1320 |
| Design Pressure | 2.1/-0.04 MPa |
| Maximum Working Pressure | 1.62 MPa |
| Design Temperature | -20/+50℃ |
| Material of Shell | P460NL1 |
| Nominal Thickness | 10(Shell)/13(End) mm |
| Hydrostatic Pressure Test | 2.10 MPa |
| LPG Semi-trailer | |
| Media | LPG |
| Water volume | 48.3~63.1M3(Customized as users demands) |
| Work pressure | 5~19.5bar depends on the media |
| Chemical Materials Semi-Trailer | ||||
| Water Volume(m³) | Media | Working Pressure(Bar) | Design Pressure(Bar) | Tare Weight(Kg) |
| 61.9 | LPG | 16 | 16.1 | 14002 |
| 63.1 | LPG | 16 | 16.1 | 13498 |
