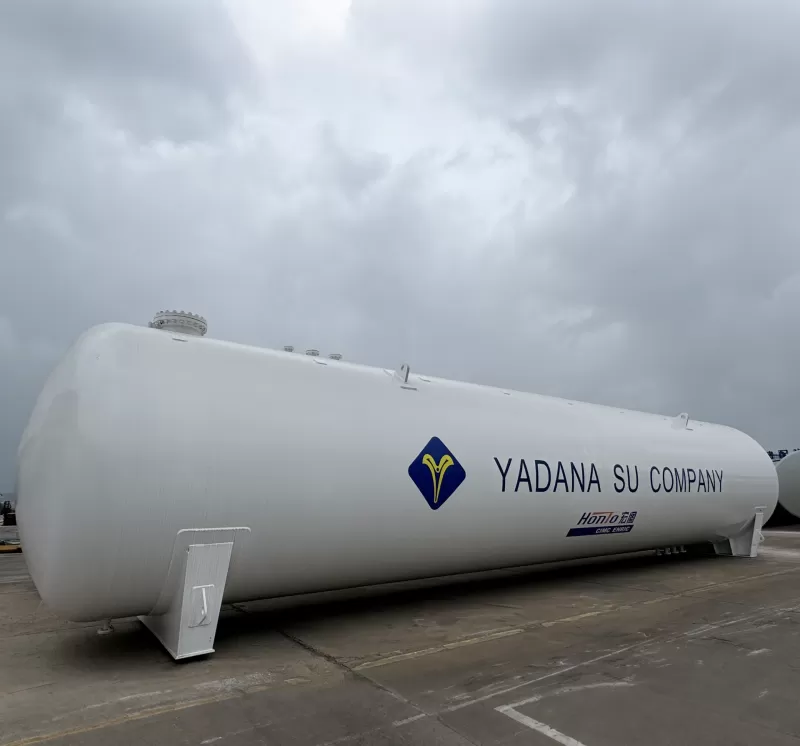

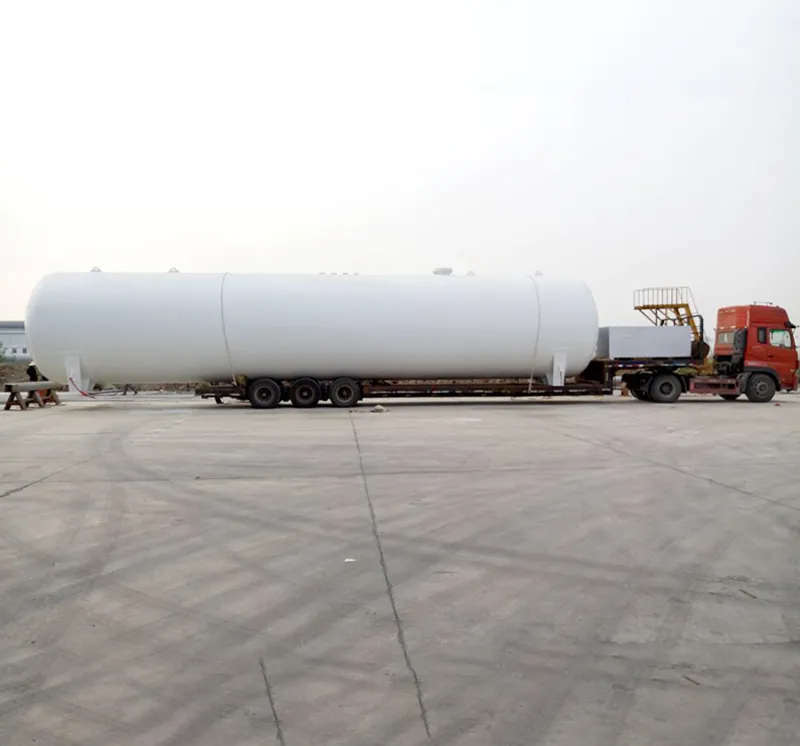

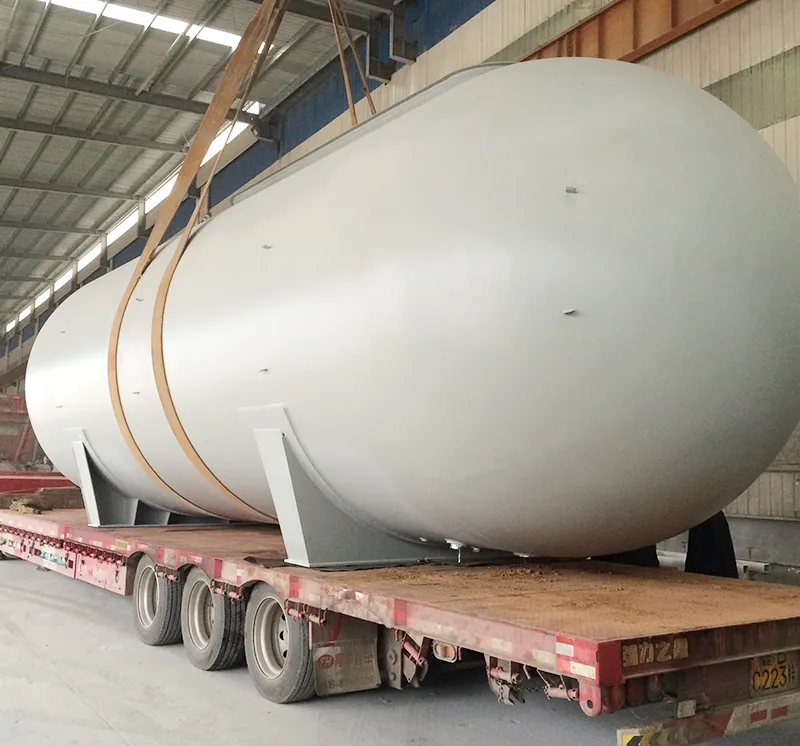

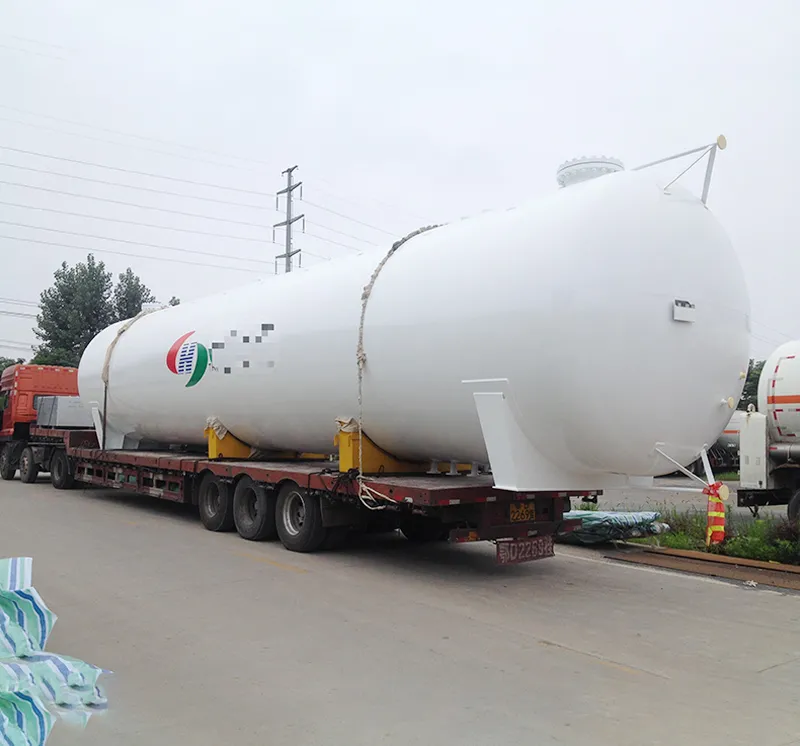

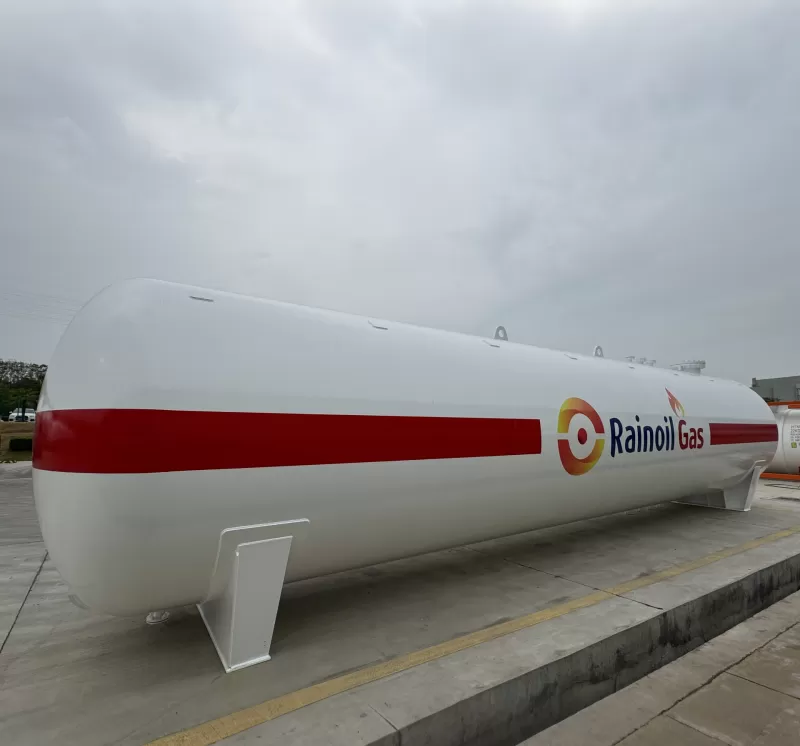

LPG Storage Tank LPG Storage Tank
LPG Storage Tank
LPG Storage Tank
LPG Storage Tank
LPG Storage Tank
LPG Storage Tank

LPG Storage Tank

The LPG storage tank is a normal temperature fixed pressure vessel, a single-layer tank structure, dedicated to storing liquefied petroleum gas, using low-alloy steel plates for the vessel, with excellent performance, safety and reliability.


Contact Now
download
DESCRIPTION
Features:

The LPG storage tank is a normal temperature fixed pressure vessel, a single-layer tank structure, dedicated to storing liquefied petroleum gas, using low-alloy steel plates for the vessel, with excellent performance, safety and reliability.LPG storage tanks are one of the most efficient ways of storing liquefied LPG, with capacities ranging from 10 (2640gl) to 200 (52800GL) cubic metres.

Technical Specification:
I. Chinese GB Standard
Water CapacityInner DiameterOverall LengthHeightWeightPayload（90% Filling Ratio）Thickness
ShellHeads
10m³1600mm5300mm2370mm3400kg4035kg8.53mm8.51mm
12m³1600mm6300mm2370mm3800kg4850kg
20m³2200mm5680mm2970mm5150kg8070kg11.35mm11.33mm
25m³2200mm7000mm2970mm6000kg10090kg
32m³2200mm8850mm2970mm7200kg12920kg
40m³2470mm8843mm3240mm8780kg16410kg12.62mm12.59mm
50m³2470mm10903mm3240mm10420kg20180kg
63m³2470mm13623mm3240mm12600kg25420kg
80m³3100mm11170mm3800mm16700kg32280kg15.58mm15.87mm
100m³3100mm13850mm3800mm20000kg40350kg
150m³3400mm17140mm4104mm29800kg60500kg17.35mm17.31mm
200m³3800mm18324mm4560mm40100kg80700kg19.27mm19.22mm


Main MaterialQ345RDesign Pressure1.61MPa
Hydraulic Test Pressure2.22MPaWorking Pressure≤1.61MPa
Corrosion Allowance1.0mmDesign Temperature-20/50℃
Life Expectancy20 yearsWorking Temperature-20/50℃
Notes: Above existing design capacities for you to choose from. If you have any other different requirements, we could also provide you with customized design.


II. ASME Standard
Water CapacityInner DiameterOverall LengthHeightWeightPayload（85% Filling Ratio）Thickness
ShellHeads
10m³1600mm5308mm2440mm3850kg4630kg11.09mm11.02mm
12m³1600mm6308mm2440mm4340kg5560kg
20m³2200mm5690mm3050mm6920kg9260kg14.86mm14.78mm
25m³2200mm7010mm3050mm8100kg11580kg
32m³2200mm8860mm3050mm9750kg14820kg
40m³2470mm8851mm3320mm11930kg18530kg16.56mm16.47mm
50m³2470mm10911mm3320mm15420kg25470kg
60m³2470mm13001mm3320mm16600kg27790kg
80m³3100mm11178mm3960mm22820kg37060kg20.53mm20.41mm
100m³3100mm13858mm3960mm27430kg46320kg


Main MaterialSA-516 Gr.70Design Pressure1.724MPa
Hydraulic Test Pressure2.25MPaWorking Pressure≤1.724MPa
Corrosion Allowance1.0mmDesign Temperature50℃
Specific Gravity0.545@15℃Working Temperature-20/50℃
Notes: Above existing design capacities for you to choose from. If you have any other different requirements, we could also provide you with customized design.


Product Applications
hydrogen production companies
LNG Liquefaction Plant - Pipeline Gas

-Hengkai Natural Gas Liquefaction Project
-Changming Phase II Natural Gas Liquefaction Project
-Hwange Natural Gas Liquefaction Project

LNG Liquefaction Plant - Coal Bed Methane

-Tianhao Coalbed Methane Liquefaction Project
-Tianyun Coalbed Methane Liquefaction Project
-Shuntai Coalbed Methane Liquefaction Project

Skid-Mounted Product Series and Typical Performance

-60.000 cubic meters/day

-60.000 cubic meters/day

-60.000 m3/day*2 sets

-200.000 cubic meters/day

Contact Us
Related Products
LPG Semi-Trailer
LPG Semi-Trailer
View More

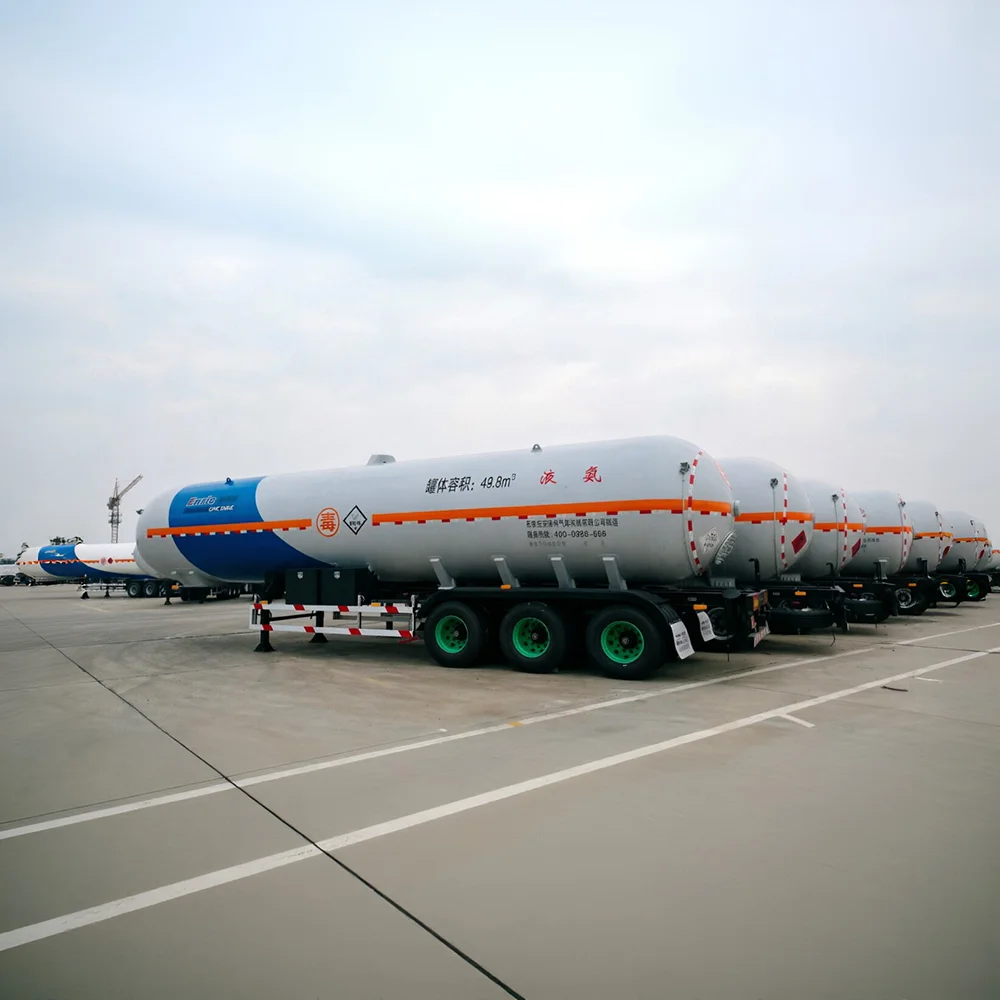

Liquid Ammonia Semi-Trailer
