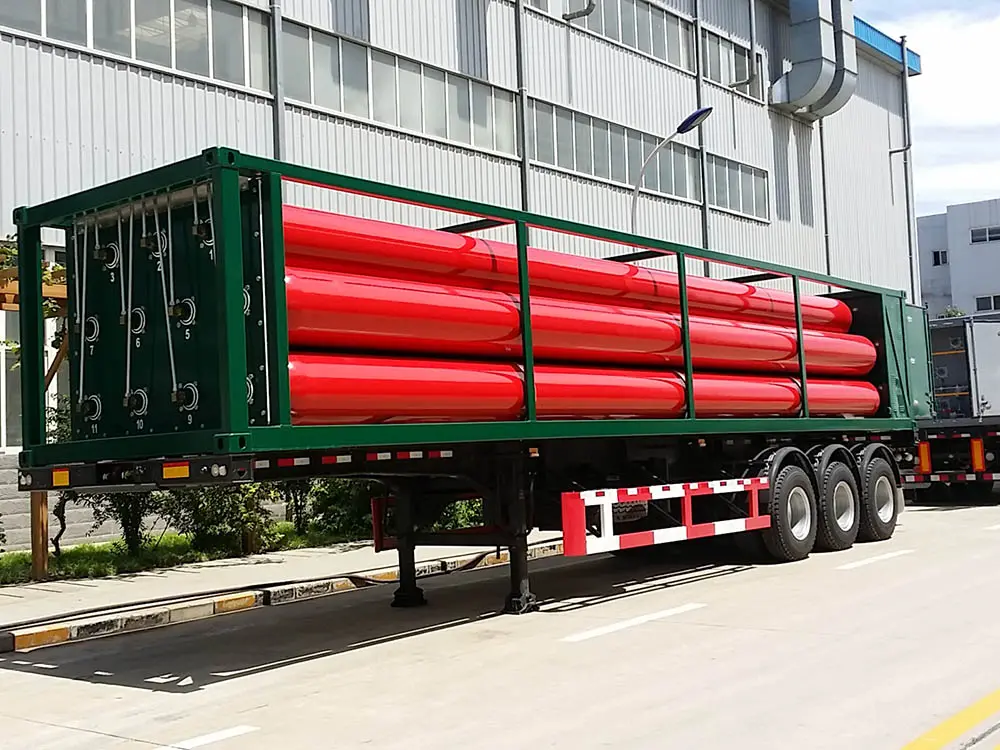

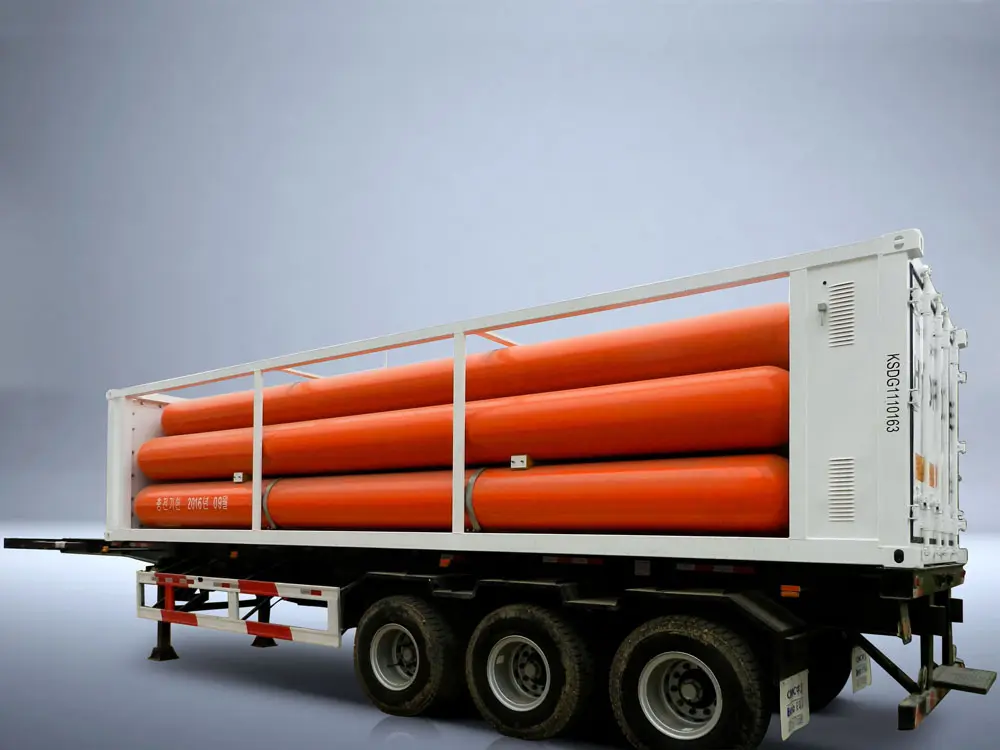

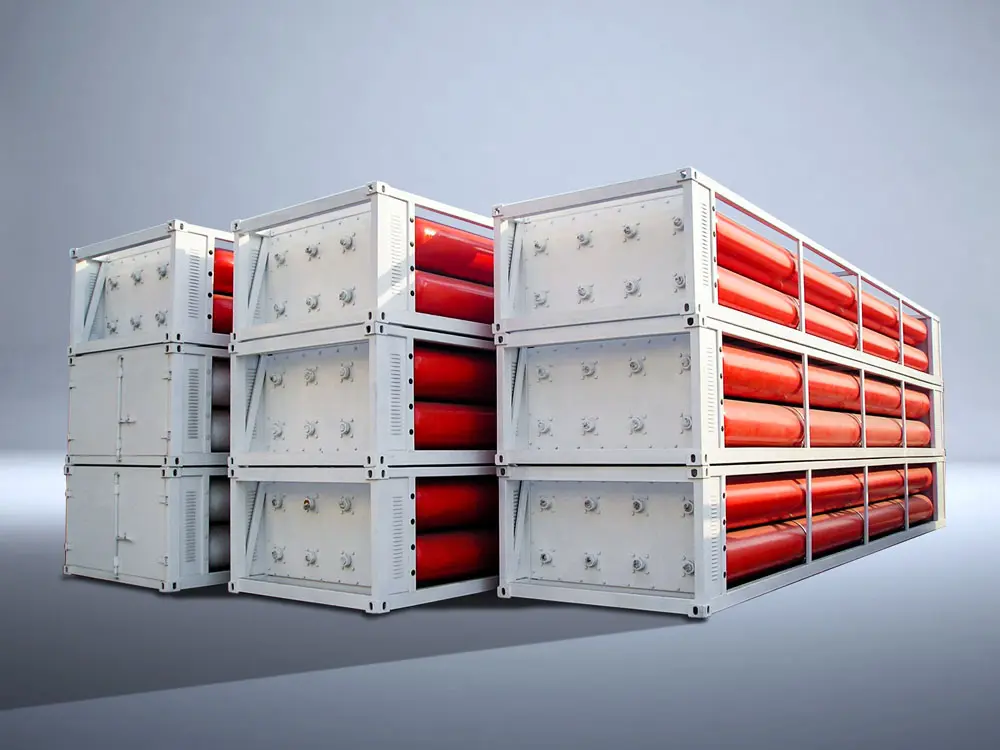

Our Hydrogen Tube Skid provides a high-efficiency, safe, and scalable solution for the transportation and storage of high-pressure hydrogen gas. Engineered specifically for the demands of the Green Energy and Industrial Gas sectors, these skids integrate precision-engineered tubes within a robust structural frame, ensuring maximum stability during transit and operation.
Designed to meet rigorous safety standards, our tube skids are optimized for various capacities and dimensions, ranging from 20′ to 40′ configurations. Whether utilized for hydrogen refueling stations or industrial feedstock delivery, these systems offer a seamless balance between tare weight optimization and maximum gas capacity, supporting the global transition toward sustainable hydrogen energy.
| Standard Size | 20′ / 40′ Containers | Working Pressure | 200 bar |
|---|---|---|---|
| 20′ (Type A) Tare Weight | 21,500 kg | 20′ (Type A) Gas Capacity | 3,147 m³ |
| 20′ (Type B) Tare Weight | 18,800 kg | 20′ (Type B) Gas Capacity | 2,267 m³ |
| 40′ (Type A) Tare Weight | 30,000 kg | 40′ (Type A) Gas Capacity | 5,000 m³ |
| 40′ (Type B) Tare Weight | 24,890 kg | 40′ (Type B) Gas Capacity | 3,975 m³ |
Certified for 200 bar working pressure with reinforced structural integrity to prevent leakage and ensure safe transport.
Skid-mounted design allows for plug-and-play installation at refueling stations or industrial sites, reducing downtime.
Maximum volumetric efficiency ensuring high gas-to-weight ratios for cost-effective logistics.
Available in 20ft and 40ft standard shipping dimensions for global compatibility with logistics networks.
Advanced welding and material selection designed specifically for hydrogen embrittlement resistance.
Directly supports Green Hydrogen infrastructure, facilitating the shift toward zero-emission energy sources.
Real-time tracking of skid location and fill levels across multiple logistics hubs.
Integrated sensors to monitor working pressure and ensure stability at 200 bar.
Automated notification systems for pressure deviations or maintenance intervals.
Digital logging of certification and inspection dates for international safety compliance.
Optimized scheduling for the rotation of 20′ and 40′ skids between production and consumption.
Monitoring structural fatigue and tube integrity over years of industrial service.
| Comparison Metric | Traditional Cylinders | Hydrogen Tube Skid |
|---|---|---|
| Loading Efficiency | Low (Manual) | High (Containerized) |
| Storage Density | Moderate | Maximum |
| Operational Cost | High per unit | Low per m³ |
| Setup Speed | Slow | Immediate |
| Safety Risk | Higher (Many joints) | Lower (Integrated) |
All our Hydrogen Tube Skids are engineered to maintain a consistent working pressure of 200 bar, ensuring safe and efficient gas transportation.
We offer two primary standard sizes: 20-foot and 40-foot containers, with different tare weights and capacities to suit your specific logistics needs.
20′ skids generally range from 2,267 m³ to 3,147 m³, while 40′ skids provide significantly higher capacities, ranging from 3,975 m³ to 5,000 m³.
Yes, they are specifically designed for the Green Energy sector to facilitate the storage and transport of hydrogen produced via electrolysis.
We use high-grade, specialized alloys and precision welding techniques that are resistant to hydrogen embrittlement, ensuring long-term structural safety.
Absolutely. Their skid-mounted nature allows them to serve as mobile storage buffers that can be easily connected to refueling dispensers.
